Ex: Advanced sections
This objective of this exercise is to help you identify the different types of advanced section views.

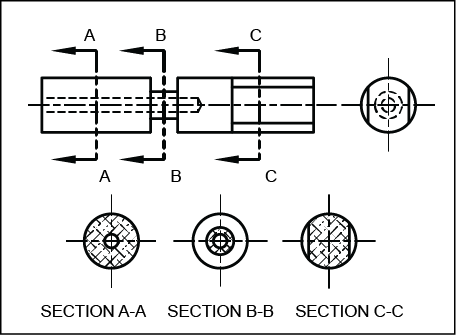

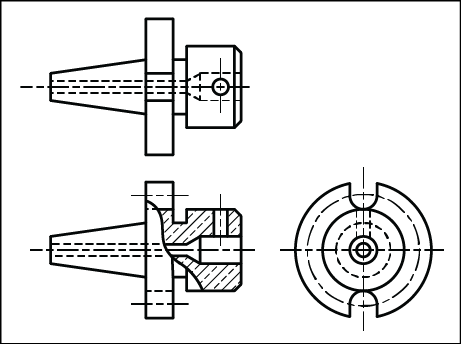

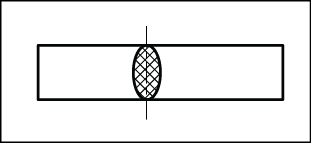

Identify which type of section each of the drawings use and the material that the part is made from.
Type of section?
Type of material?
Type of section?
Type of material?
Type of section?
Type of material?
Type of section?
Type of material?
