Advanced Sections



Lecture content

Advanced Sections



The advanced sections that will be cover are the following.



  • Aligned section
  • Rib and web section
  • Broken section
  • Removed section
  • Revolved section



Aligned Section



In order to include angled elements in a section, the cutting plane may be bent so that it passes through those features.



Conventions of Revolution



Features are revolved to the projection plane, and then projected over.



Aligned section

Lecture content

Rib and Web Section



To avoid a false impression of thickness and solidity, ribs and webs are not sectioned. If the cutting plane passes crosswise through the rib or web, we include section lines.



Rib Section



Lecture content

Broken Section



Sometimes only a partial or broken out section is needed. Hidden lines are shown in the non-sectioned area of a broken section.



Broken sectin



Removed Section



A removed section is one that is not in direct projection of the view containing the cutting plane.



Removed section



Lecture content

Revolved Section

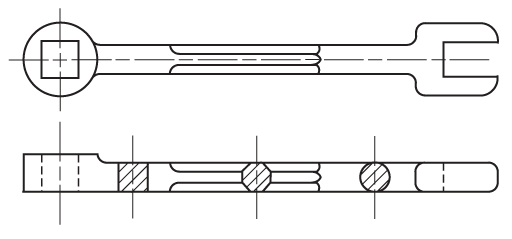

The cross sectional shape of an object may be shown in the longitudinal view by means of a revolved section.



Revolved section



Lecture content

Non-Sectioned Parts



It is common practice to show standard parts 'in the round' or un-sectioned.



  • Nuts
  • Bolts
  • Rivets
  • Shafts
  • Screws



Thin Sections



For extremely thin parts of less than 4 mm thickness, the parts should be shown in solid black or without section lines.



  • Sheet metal
  • Washers
  • Gaskets
