Ex: Aligned Section



This exercise will take you through creating an aligned section.



You will need your textbook worksheet for this exercise.

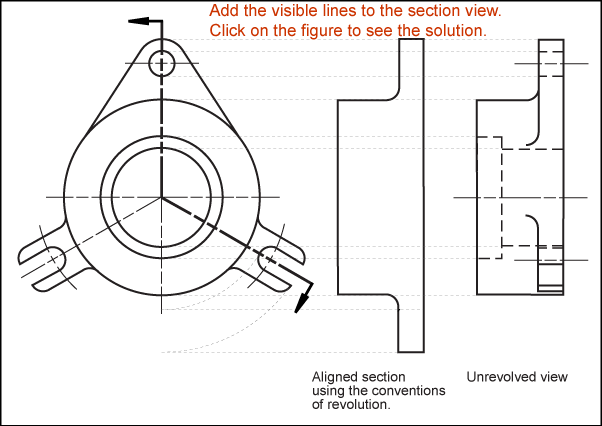

Given the front and unrevolved right side views, sketch the right side view as an aligned section view using the conventions of revolution. The material is cast iron.



aligned section
