THREADS & FASTENERS - Drill Jig assembly

Previous        Next



Ex: Drill Jig assembly

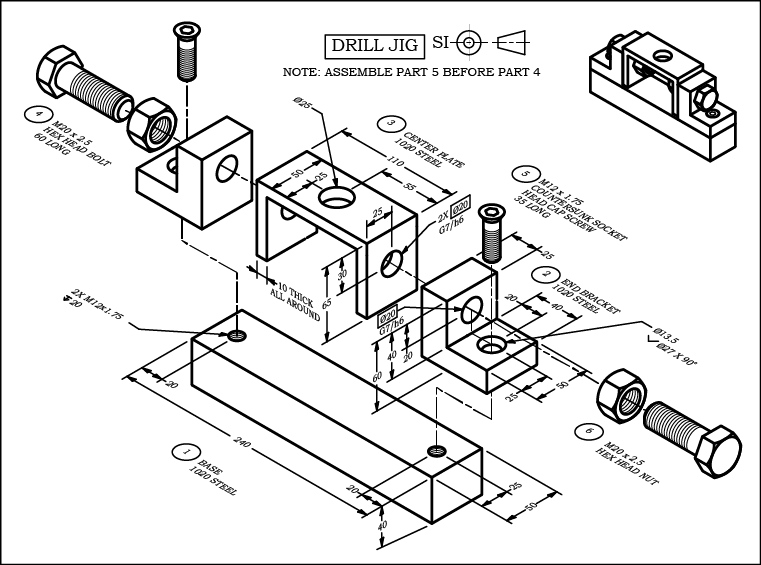

Determine the normal fit clearance hole and countersink dimension for the M12 x 1.75 courntersunk socket head cap screw.



What is the clearance hole for a M12 x 1.75 cap screw?



Enter tap drill size:



What is the countersink diameter for a M12 x 1.75 socket head cap screw?



Enter the countersink diameter:



What is the countersink angle for a M12 x 1.75 socket head cap screw?
