THREADS & FASTENERS - Milling Jack assembly

Previous        Next

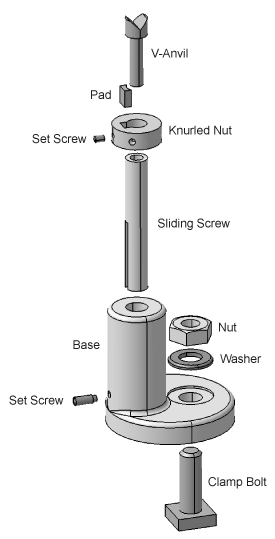

Ex: Milling Jack assembly





The Sliding Screw and Clamp Bolt have 5/8 inch thread cut into their bodies. The Sliding Screw as a fine thread and the Clamp Bolt has a coarse thread. Write the thread note that would appear on the print for both parts.



Enter the thread note for a 5/8 inch fine thread.



Enter Thread Note:



Enter the thread note for a 5/8 inch course thread.



Enter Thread Note:



The Base has a 1/4 inch course thread drilled and tapped into its body. Write the thread note that would appear on the print. What is the tap drill size?



Enter the thread note for a 1/4 inch course thread.



Enter Thread Note:



What is the tap drill size for a 1/4 inch course thread?



Enter tap drill size:



The Knurled Nut has a 0.190 inch major diameter course thread drilled and tapped into its body. Write the thread note that would appear on the print. What is the tap drill size?



Enter the thread note for a 0.190 inch course thread.



Enter Thread Note:



What is the tap drill size for a 0.190 inch course thread?



Enter tap drill size:
