Ex: Inch Tolerance Definitions



This exercise explores some definitions related to inch tolerancing.



Exercise: Inch Tolerance Definitions

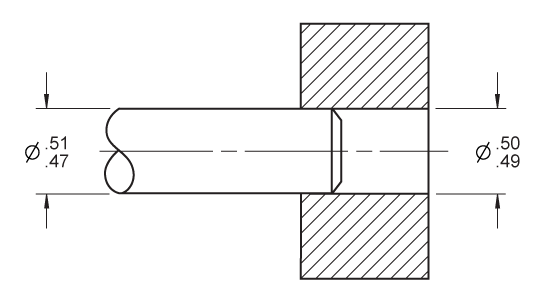

Refer to the figure when filling in the following table. Click the "Submit Answers" button to check your answers.



  Shaft Hole Check
Limits Min. Max. Min. Max.
Basic Size
Tolerance
MMC
LMC
Max. Clearance
Min. Clearance
