Ex: Over dimensioning



This exercise will show a case of over dimensioning.

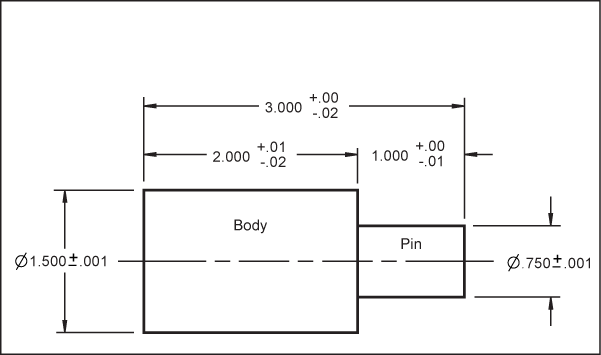

Look at the figure and explain why this object is dimensioned incorrectly. When you think you know the answer, click on the figure to reveal the answer.



Assume the diameter dimensions are correctly dimensioned.



Over Dimensioning
