Full Section

Lecture content

What type of section should I use?



The type of section used depends on the situation and what information needs to be conveyed.



Basic Sections



  • Full Section
  • Half Section
  • Offset Section



Full Section

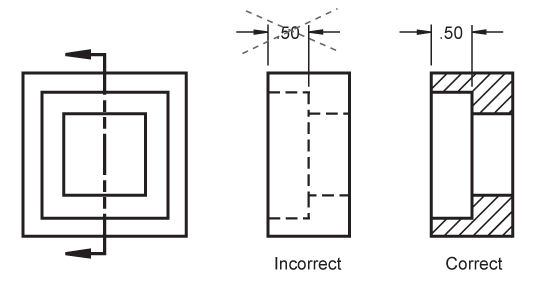

To create a full section, the cutting plane passes fully through the object. Used in many cases to avoid having to dimension hidden lines.



Full Section
