Sectional Views



Lecture content

What is a section view?



A sectional view or a section looks inside an object. Sections are used to clarify the interior construction of a part that can not be clearly described by hidden lines in exterior views. By taking an imaginary cut through the object and removing a portion, the inside features may be seen more clearly.



What is this? An ugly rock? Hover your mouse over the image and find out.



Geode



Lecture content

Creating a section view.



  1. The part is cut using an imaginary cutting plane.
  2. The unwanted portion is mentally discarded exposing the interior construction.



Cutting plane

Section view example



Section view drawing



Lecture content

Lines used in section views.



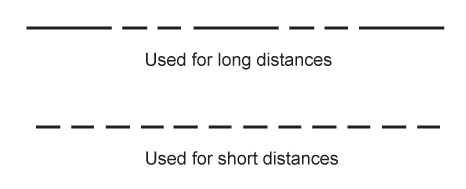

Cutting Plane Line: Used to show where the object is being cut. (Phantom line type)



Cutting plane line type



Lines used in section views



Section Lines: Used to indicate where the cutting plane cuts the material. Section lines are thin and the symbols (type of lines) are chosen according to the material of the object. Section lines are generally drawn at a 45° angle.



Section line symbols



Lecture content

Rules of Sectioning



Rule 1: A section lined area is always completely bounded by a visible outline.



Rule 2: The section lines in all areas should be parallel. Section lines shown in opposite directions indicate a different part.



Rule 3: All the visible edges behind the cutting plane should be shown.



Rule 4: Hidden features should be omitted in all areas of a section view. Exceptions include threads and broken out sections.
