Drawing Linear Features
How do we draw an isometric pictorial?

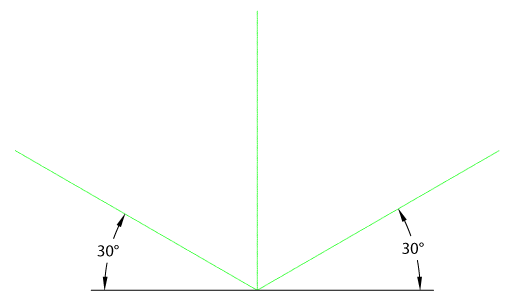

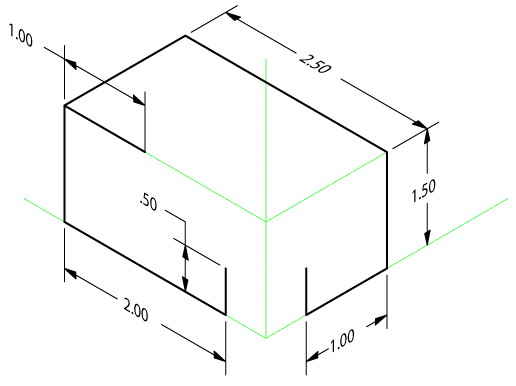

Step 1) Draw the three construction lines that represent the isometric axes.

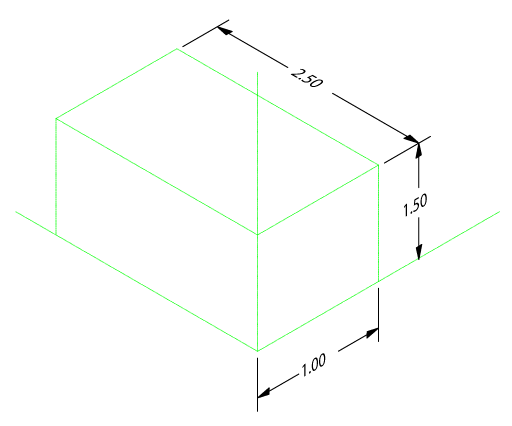

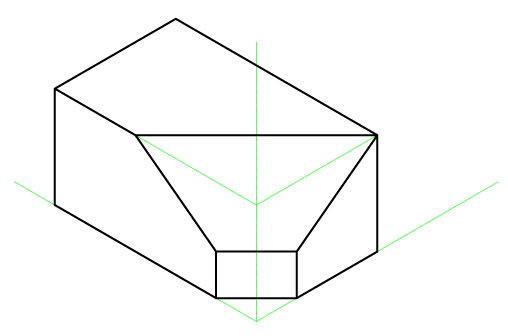

Step 2) Draw a defining box. The sides of the box are equal to the maximum height, width, and depth dimensions of the object.
Step 3) Draw the lines of the object that are parallel to the axes.
Step 4) Add the lines of the object that are not parallel to one of the axes.
Step 5) Erase or remove the construction lines.
Step 6) If the drawing is produced in a 2-D drawing package, it should be scaled by 80%.
