Ex: Isometric Pictorial Linear Features



The objective of this exercise is to practice creating isometric pictorials with only linear features.



You will need your textbook worksheet for this exercise.

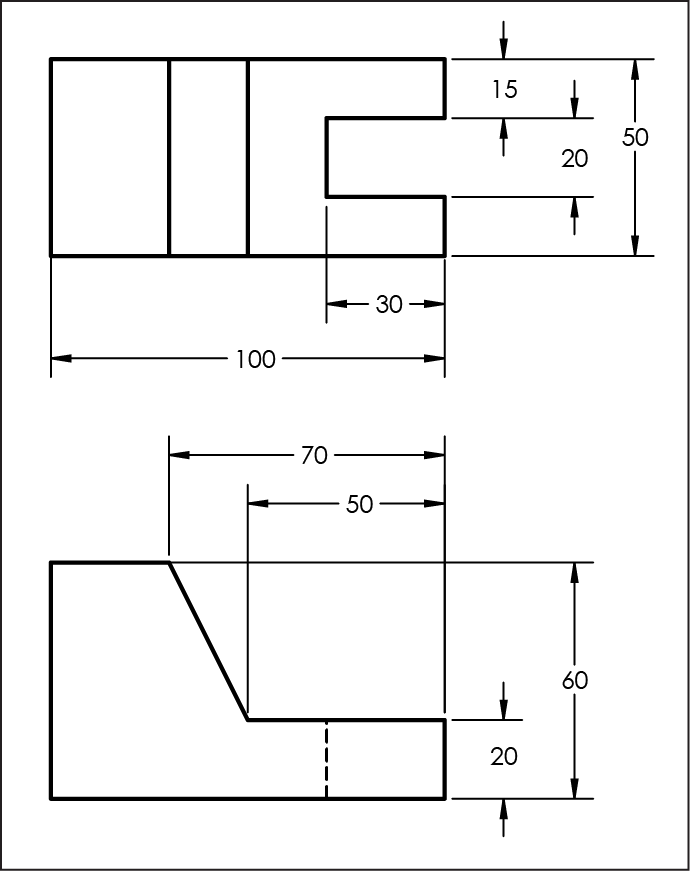

Create an isometric pictorial of the above object. The grid spacing is 0.5 inches.

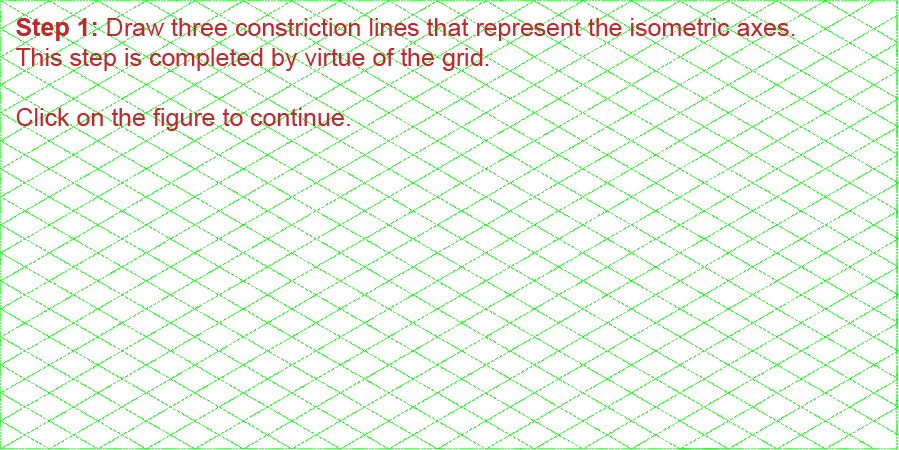

creating an isometric pictorial
