Ex: Dimensioning 4
The objective of this exercise is to practice dimensioning a part.
You will need the worksheet in your book to complete this exercise.

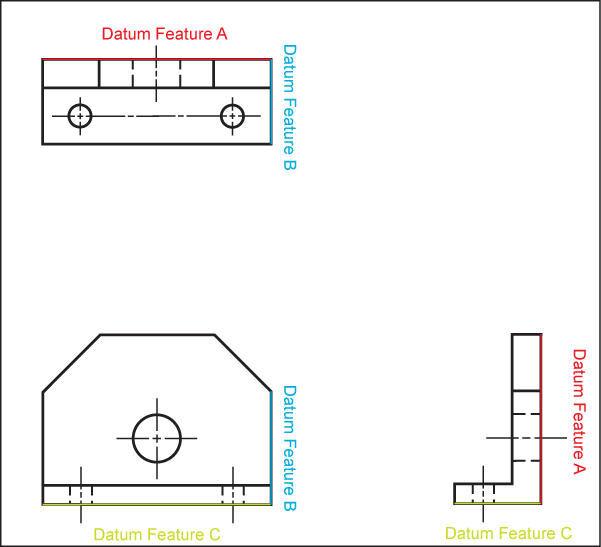

When the function of a part is unknown, correctly dimensioning the part is not a unique solution. To decrease the outcome variability when dimensioning your part, use the datum features indicated in the figure. When you have dimensioned your part, click on the figure to reveal the solution.
