Ex: Dimension choice
The objective of this exercise is to become familiar with dimension choices that influence manufacturing.
You will need the worksheet in your book to complete this exercise.

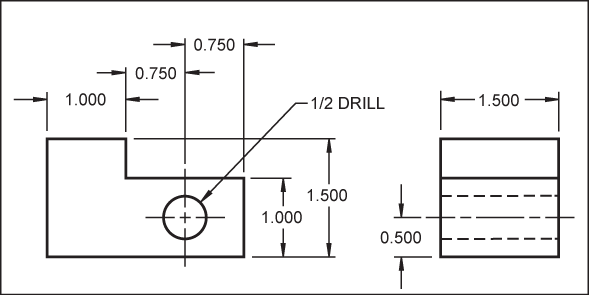

Consider the incorrectly dimensioned object shown. There are 6 types of dimensioning mistakes. List them and then dimension the object correctly. Click on the figure to reveal the solution.
