ADVANCED DRAWING TECHNIQUES - Exercise: Identifying views

Ex: Identifying views

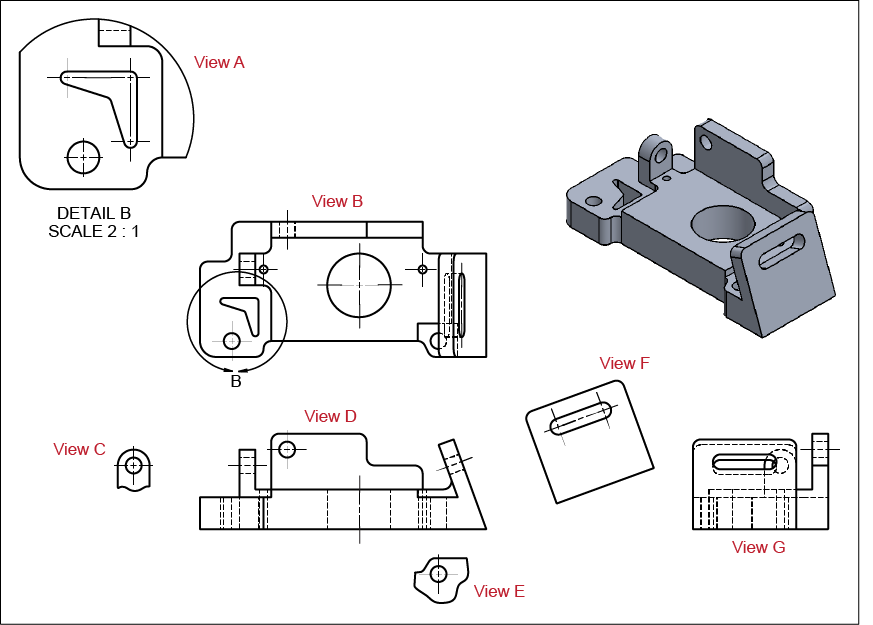

In the figure, identify the following views.

Identify the complete principle views.

View A
View B
View C
View D
View E
View F
View G

Identify the auxiliary view.

View A

View B

View C

View D

View E

View F

View G

Identify the detail view.

View A

View B

View C

View D

View E

View F

View G

Identify the partial views, not including the detail view.

View A

View B

View C

View D

View E

View F

View G
