Advanced View Techniques

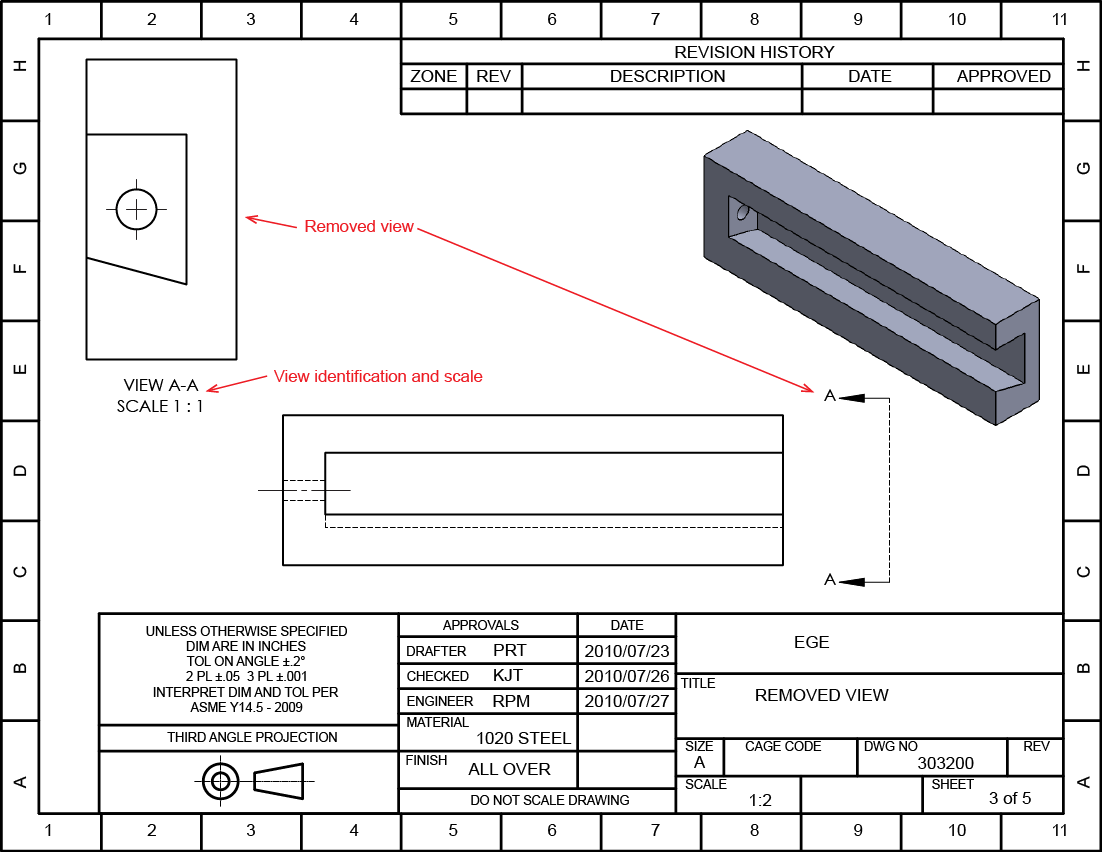

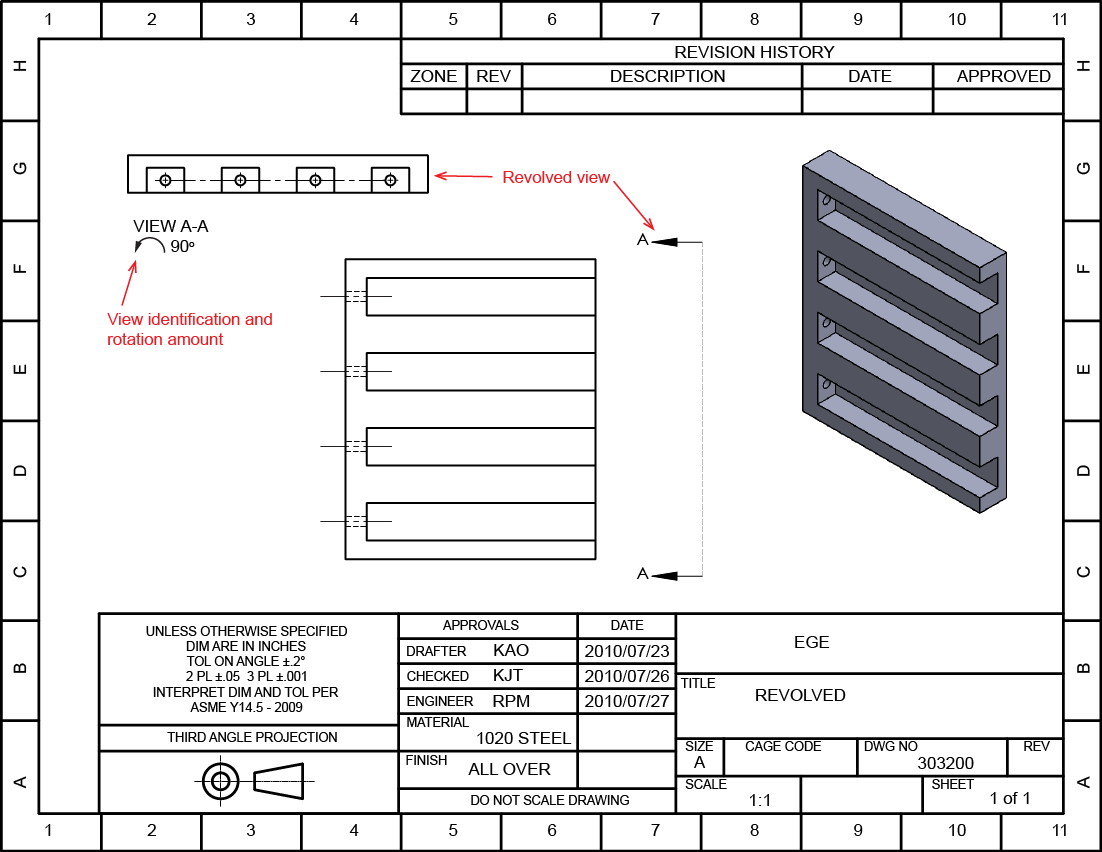

Removed and revolved orthographic views
These views are used when ...
- there is limited space to place a normally projected principle view.
These views may be ...
- removed from the projection path.
- rotated.
- scaled.
These views are ...
- labeled.

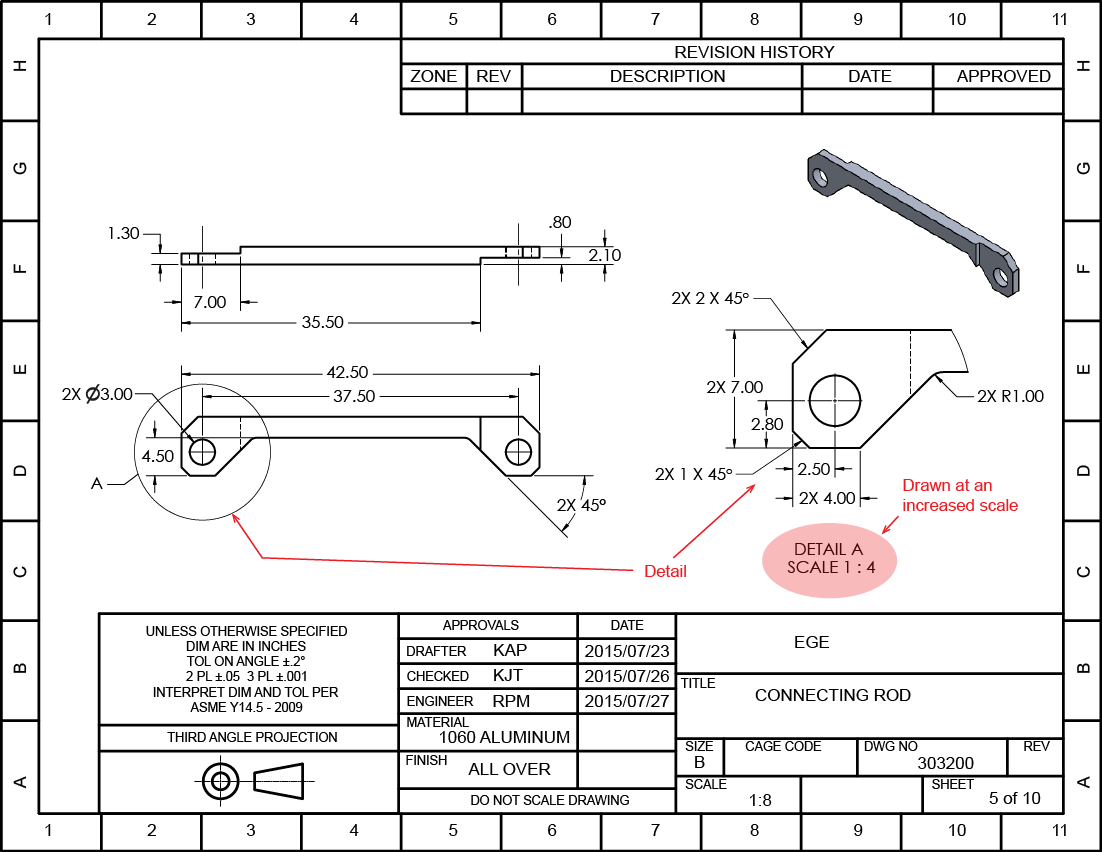

Detail views
These views are used when ...
- there is a small feature that needs to shown at an increased scale.
- there is a feature that needs to be more fully dimensioned.
These views may be ...
- removed from the projection path.
- scaled.
These views are ...
- labeled.

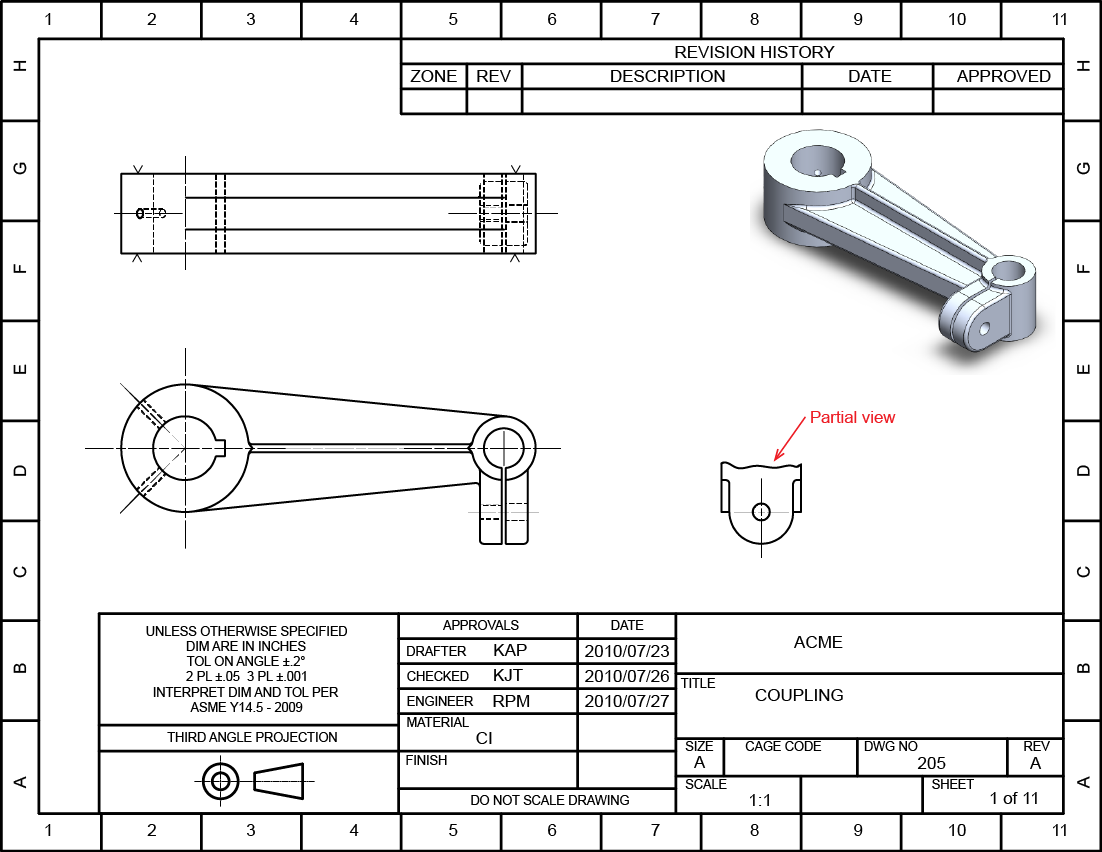

Partial views
These views are used when ...
- it is not necessary to show a complete view.
These views may be ...
- incomplete
Auxiliary views
Auxiliary views are created by projecting the part onto a plane that is at an angle to one of the primary planes.
These views are used to ...
- show features true size.
These views may be ...
- partial.

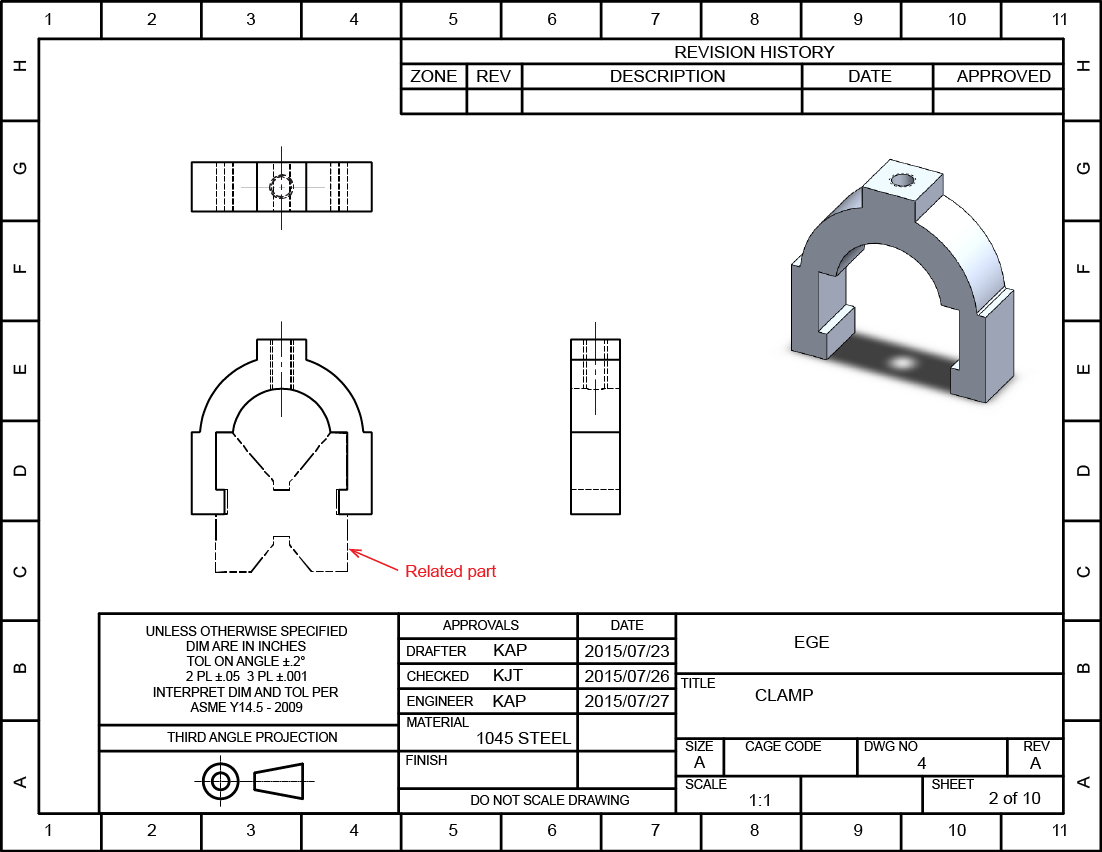

Related views
Related views show a part that mates with but is not part of the detail being drawn.
These views are
- drawn in phantom linetype.
These views may be
- partial.
