Conceptual Dynamics - Independent Learning

Solving Rectilinear Problems Graphically- Example Problem 2.4-3

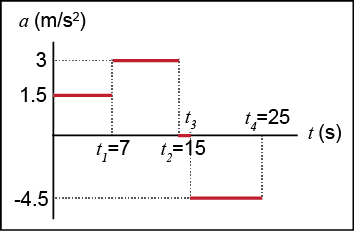

A motorcyclist drives his motorcycle in a straight line. The motorcycle starts from rest and moves with the acceleration profile shown for 25 seconds and then brings the motorcycle to a stop. Draw the velocity profile and determine the motorcycle's total distance traveled.





Given:
  • a-t graph
  • v0 = 0
  • t4 = 0



Find:
  • v-t graph
  • s4



Solution:



Video solution:



The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.





Interactive solution:



Draw the v-t graph for the motorcycle.
