Solving Rectilinear Problems Graphically - Example 2.4-2

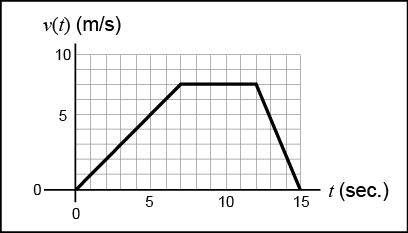

A particle moves along a straight line. Its velocity profile is given in the graph below.





What is the distance traveled by the particle travel between 0 and 15 seconds?



m





What is the average velocity of the particle in the first 10 seconds?



m/s





What is the particle's acceleration at 5 seconds?



m/s2





What is the particle's acceleration at 10 seconds?



m/s2
