Conceptual Dynamics - Independent Learning

Power and Efficiency - Example Problem 7.8-1

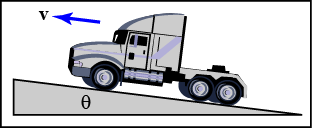

A 16,000-lb truck climbs a 12% grade with a constant speed of 50 mph as shown. During a 1 min time interval, determine the total tractive force produced by the wheels, the power developed by this force and the distance the truck travels. Neglect rolling and air resistance.





Given:
  • 12% grade
  • Δt = 1 min
  • W = 16,000 lb
  • v = 50 mph
  • Neglect rolling and air resistance.



Find:
  • Ft
  • P
  • d



What is θ?



θ = degrees
