Plane Curvilinear Motion - Polar Coordinates - Example 3.4-4

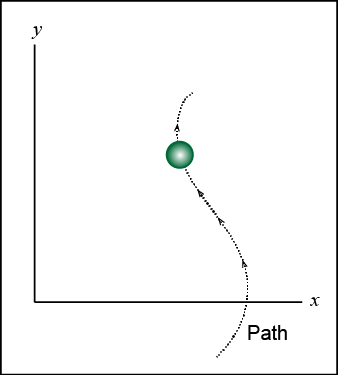

On the figure in your book, draw the r-θ and n-t axes. Also include the radial position vector, the velocity vector, and the transverse coordinate. Click on the figure to see the answer.
