Ex: Tolerance Accumulation
This exercise will illustrate how tolerances can stack up.

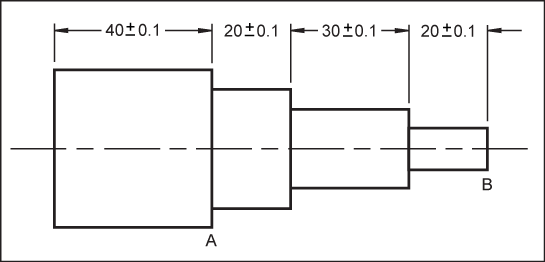

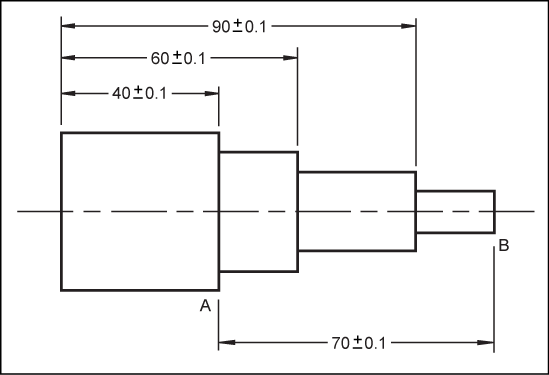

What is the tolerance accumulation for the distance between surface A and B for the three different dimensioning methods shown?
Note: You are answering the following question, "The controlling dimension varies by plus or minus what value?" Enter a positive value.
Tolerance accumulation between surface A and B =
Tolerance accumulation between surface A and B =
Tolerance accumulation between surface A and B =
