Ex: Full Section



This exercise will take you through creating a full section.



You will need your textbook worksheet to complete this exercise.

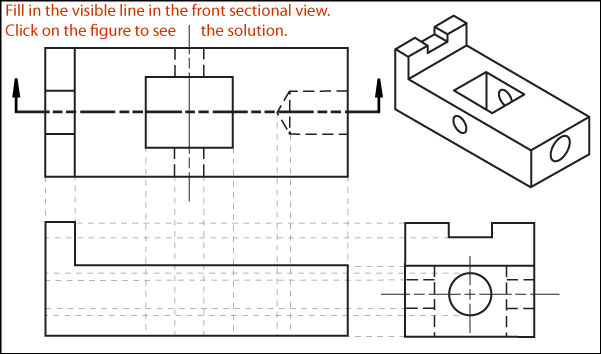

Given the top and right side views, sketch the front view as a full section. The material used is steel.
