Ex: Creating Pictorials
The objective of this exercise is to practice creating pictorials with only linear features.
You will need your textbook worksheet for this exercise.

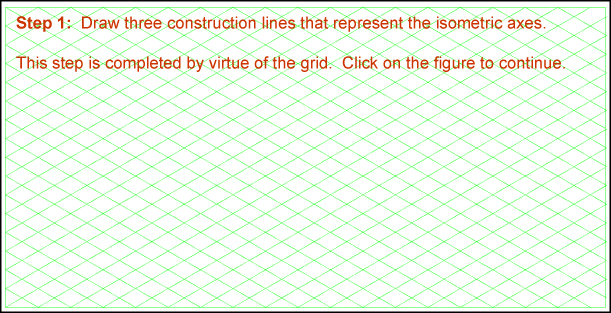

Create an isometric pictorial of the above object. The grid spacing is 0.5 inches.

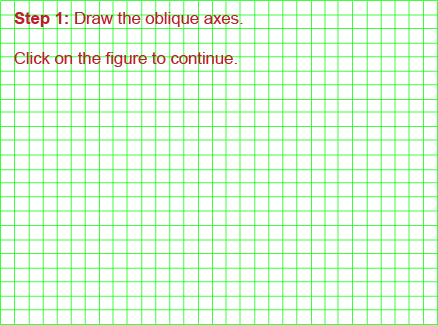

Create cabinet oblique pictorial of the above object. The grid spacing is 0.2 inches.
