Pictorials Introduction
What is a pictorial?
Pictorials are 2-D drawings that look 3-dimensional.

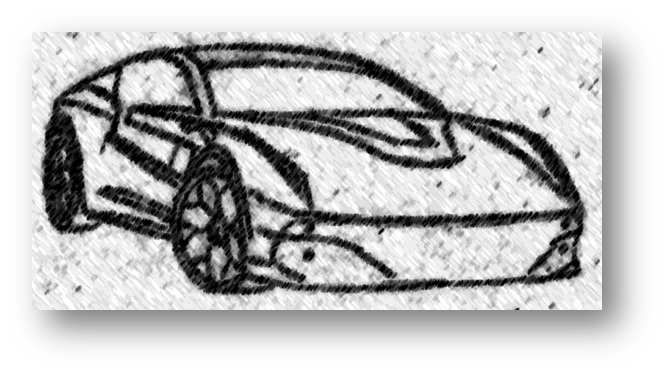

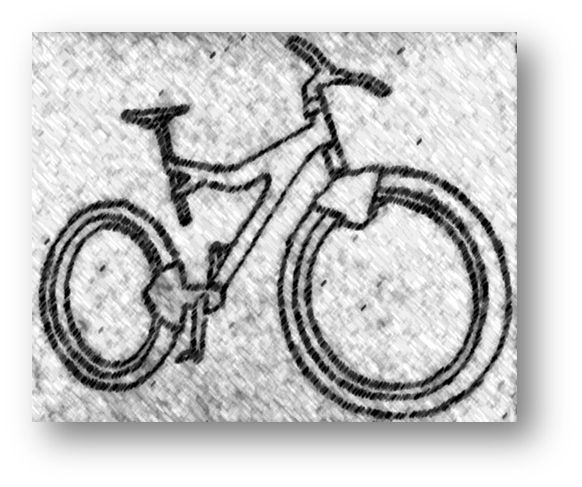

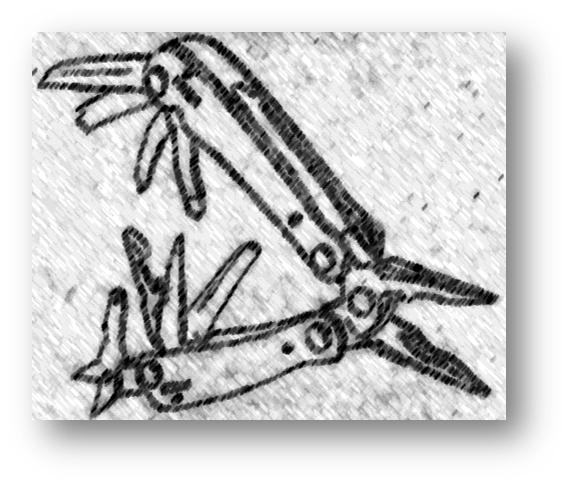

Pictorials are very effective at illustrating design ideas.
Pictorials are often used to help a print reader visualize the part.
Pictorials are very effective at illustrating assemblies.
