Ex: Screw Thread Features

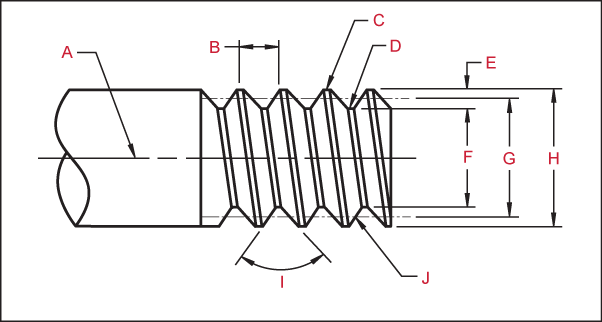

The objective of this exercise is to familiarize you with the features of a helical thread.



Identify the thread features by clicking on the appropriate button.



Thread Features



Pitch (P)



Thread Axis



Crest



Major Diameter (D)



Thread Angle (A)



Root



Minor Diameter (d)



Pitch Diameter (DP)



Thread Depth (D-d)/2



Side
