Ex: Feature dimensions 3



You will need your textbook worksheet for this exercise.

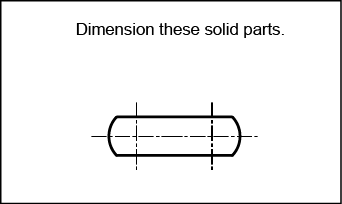

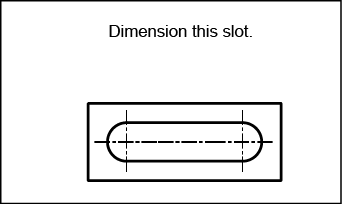

Indicate the size of the following features using appropriate feature dimensions and symbols. Use any values you like. Click on the figure to reveal the solution.
