Ex: Feature dimensions 2
You will need your textbook worksheet for this exercise.

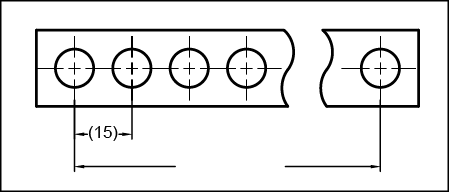

Indicate the size of the following repeated features using appropriate feature dimensions and symbols. Click on the figure to reveal the solution.
