Ex: Circular and rectangular views



The objective of this exercise is to get familiar with the difference between the circular and rectangular views of a hole or cylinder.

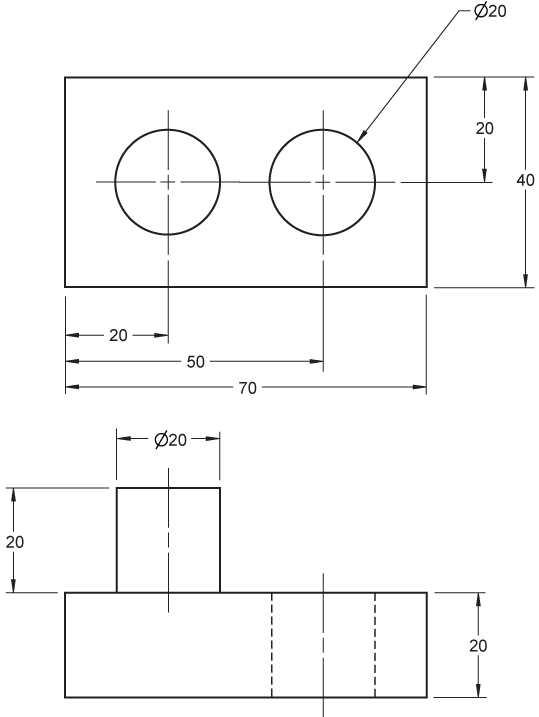

Below is shown the front and top view of a part. Consider the hole and cylinder features of the part when answering the following questions.



  1. Which view is considered the circular view of the hole and cylinder and which is considered the rectangular view?

    2.

    The circular view is the







    The rectangular view is the







  2. Looking at just the top view, can you tell the difference between the hole and the cylinder?

    3.







  3. Why is the diameter of the hole given in the circular view and diameter of the cylinder given in the rectangular view?

    4.







Circular and rectangular views exercise
