Detailed Drawings



Lecture content

What is a detailed drawing?



An orthographic projection is a shape description of an object (front, top, right side views)

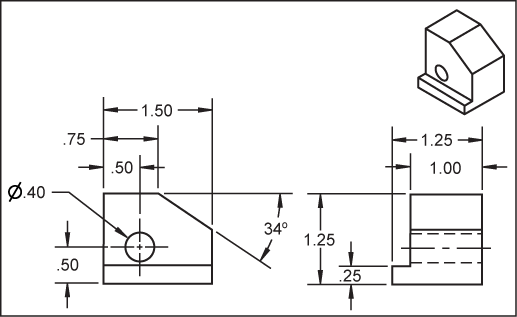

A detailed drawing is an orthographic projection, complete with all the dimensions and specifications needed to manufacture the object.



detailed drawing



Should we dimension an object using the dimensions that we use to draw the object?









We need to follow accepted standards. (ASME Y14.5M – 2009)
