Supplemental Problems
Supplemental Problem 1: Create a working drawing package for the following Linear Bearing. The working drawing package should contain an assembly drawing, details of all the parts, and a standard parts sheet. Notice that some of the dimensioned isometric drawings are not dimensioned using proper dimensioning techniques. When drawing the detailed drawings use proper symbols and dimensioning techniques.
Draw a detailed drawing of the Bottom Plate (Part#1). If you are just studying the basics and have not covered threads and fasteners, replace the 12X 10 - 24 UNC dimension with a 12X n.19 dimension. When you have completed the drawing, click on the figure to see the solution.
Draw a detailed drawing of the Guide Shaft (Part#2). If you are just studying the basics and have not covered tolerancing, ignore the RC4 tolerance. NOTE: This part is symmetric and all fillets are R.12. When you have completed the drawing, click on the figure to see the solution.

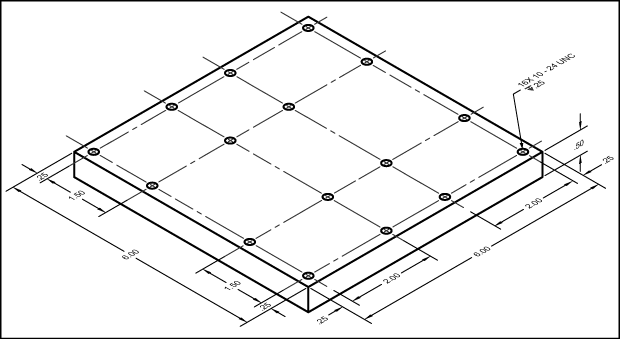

Draw a detailed drawing of the Top Plate (Part#3). If you are just studying the basics and have not covered threads and fasteners, replace the 16X 10 - 24 UNC dimension with a 16X n.19 dimension. When you have completed the drawing, click on the figure to see the solution.
Draw a detailed drawing of the Pillow Block (Part#4). If you are just studying the basics and have not covered tolerancing, ignore the FN1 dimension. When you have completed the drawing, click on the figure to see the solution.
Draw a detailed drawing of the Bearing (Part#5). If you are just studying the basics and have not covered tolerancing, ignore the FN1and RC4 dimensions. When you have completed the drawing, click on the figure to see the solution.
Create a standard parts sheet. When you have completed the sheet, click on the figure to see the solution.
Draw a complete assembly drawing. When you have completed the drawing, click on the figure to see the solution.
