Advanced Part Techniques



Cast and molded parts

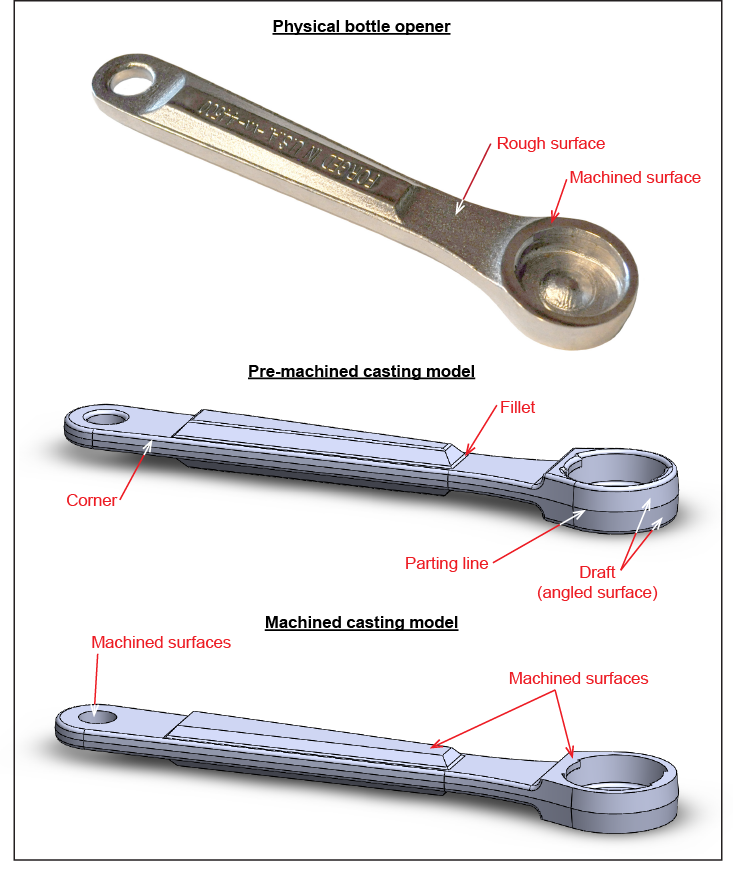

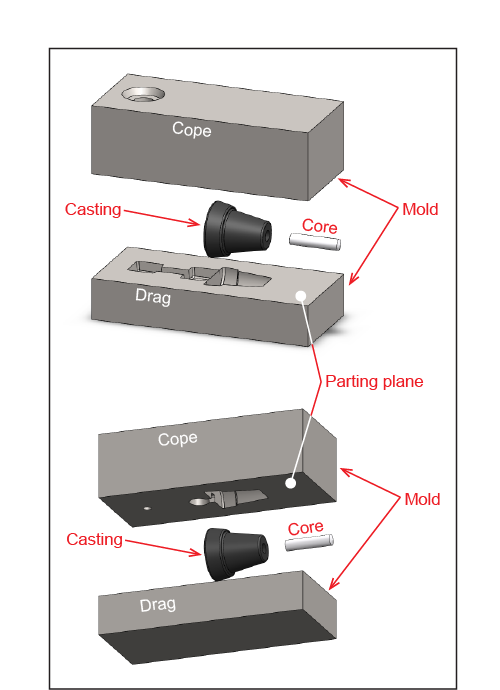

Cast and molded parts are created by solidifying a molten material in a mold.









Surface texture symbol

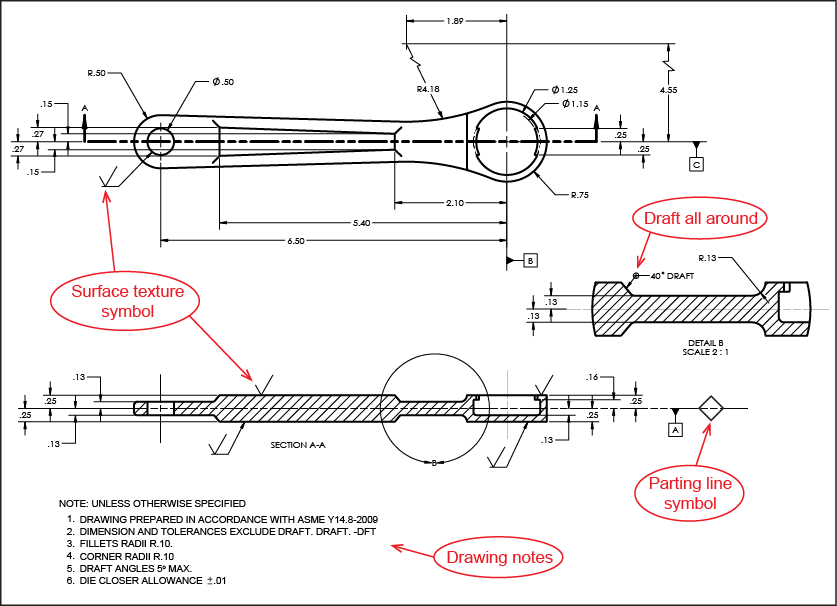

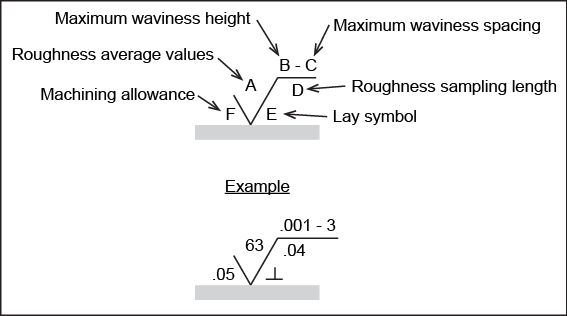

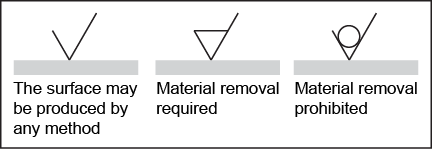

Surface texture symbols are used to indicate sufaces of a casting that will be machined after the casting process.









Welded parts



Welding joins pieces of metal by heating the surfaces to the point of melting using a blowtorch, electric arc, or other means. Sometimes a filler rod is used to add material to the weld joint.
