Rotation about a Fixed Axis - Conceptual Example 6.6-2

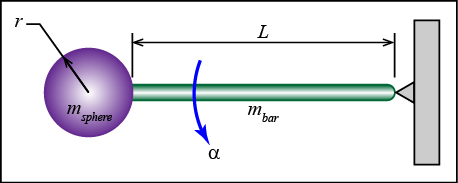

Consider a pendulum that is released from the position shown and falls under the influence of gravity. What affect do you think increasing the size of msphere, mbar, L and r have on the angular acceleration (α)? Check your assertions.





Sphere



msphere = kg         r = m



Bar



mbar = kg         L = m



Angular acceleration



α = rad/s2





Equations used to calculate α



α = ∑MO/IO



IO,bar = (1/3)mbarL2



IO,sphere = (2/5)mspherer2 + msphere(L + r)2



What effect does increasing msphere have on the angular acceleration (α)?
















What effect does increasing mrod have on the angular acceleration (α)?
















What effect does increasing r have on the angular acceleration (α)?
















What effect does increasing L have on the angular acceleration (α)?
