General Planar Motion - Example Problem 6.8-2

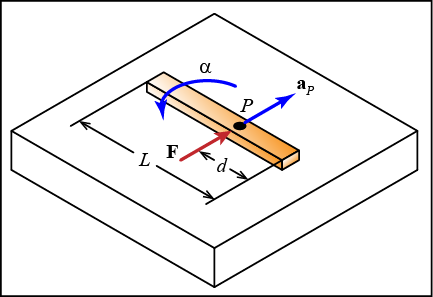

A uniform slender bar (L = 1.5 m) rests on a smooth horizontal sheet of ice when a force F is applied normal to the bar's longitudinal axis at point P. Point P is observed to have an initial acceleration aP of 10 m/s2, and the bar has a corresponding angular acceleration α = 9 rad/s2, in the directions shown. Determine the distance d.
Given:
- L = 1.5 m
- α = 9 rad/s2
- aP = 10 m/s2
Find: d
Video solution:
The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.
Interactive solution:
Draw a free-body diagram of the bar. Click on the figure to see the results.
Which moment equation should we use?
