Applying Newton's Second Law - Conceptual Example 5.6-4

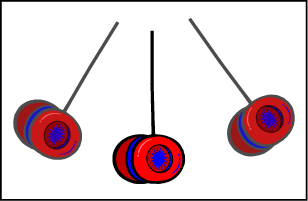

A yo-yo swings from a string like a pendulum.





Draw a free-body diagram of the yo-yo when it is at the bottom of its motion.









Draw a free-body diagram of the yo-yo when it has swung up to an angle of 45 degrees?









At an angle of 50 degrees, the string suddenly breaks. Draw a free-body diagram of the yo-yo the instant after the string breaks.
