Linear Impulse-Momentum Principle - Example Problem 9.3-11

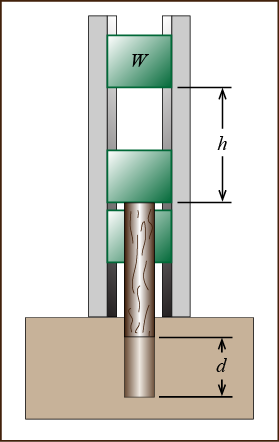

A 800-lb ram of a pile driver falls h = 3 yards from rest and strikes a 600-lb pile partially embedded in the ground. It was observed that the ram had no perceptible rebound after striking the pile. If the pile drives d = 1 yard into the ground, and it was observed that it took 2 seconds for the system to come to rest, determine the average resistive force of the ground on the pile.





Given:

• W = 800 lb
• W_P = 600 lb
• h = 3 yd = 9 ft
• d = 1 yd = 3 ft



Find:

• I



Video solution:



The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.
