Work-Energy Balance & Conservation of Energy - Example Problem 7.6-5

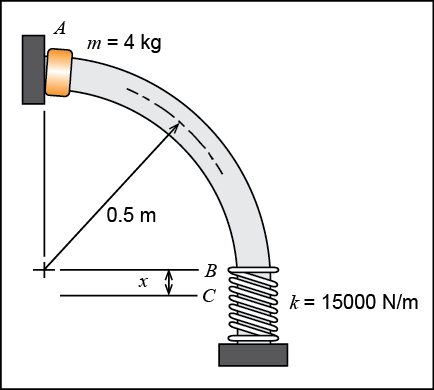

A 4-kg collar is released from rest from point A on the curved rod shown. If friction is neglected, determine (a) the velocity of the collar at point B just prior to engaging the spring and (b) the distance x that the spring deforms before the collar again comes to rest at point C. If an experiment is conducted and it is determined that the spring actually deforms x = 0.05 m, calculate (c) the work done by friction over the length of the collar’s entire travel from point A to point C.





Given:
  • m = 4 kg
  • No friction
  • r = 0.5 m
  • k = 15 kN/m
  • vA = 0
  • vC = 0



Find:
  • vB
  • x
  • UFf if x = 0.05 m



Video solution:



The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.





Interactive solution:



Which is the correct energy equation between states A and B?
