Work - Example Problem 7.1-7

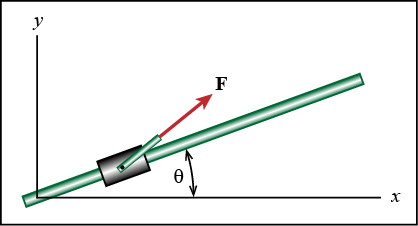

A bushing slides on a shaft that forms a 20o angle with respect to the x-axis. A constant force F = 5i + 4j N acts on the bushing. Determine the work the force performs on the bushing if it moves a total distance of 2 m along the shaft.
Given:
- θ = 20o
- F = 5i + 4j N
- d = 2m
Find: UF
Video solution:
The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.
Interactive solution:
Which form of the work equation is the simplest form that we can use to determine the work performed by force F?
