Plane Curvilinear Motion: Relative Motion - Example Problem 3.6-2

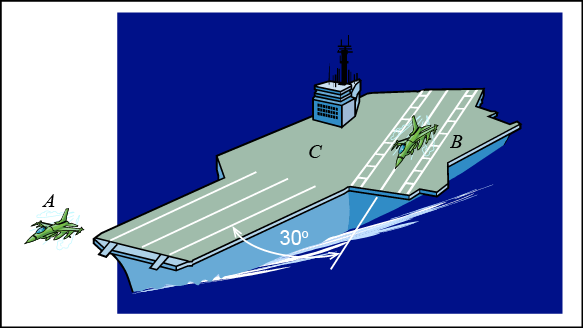

An aircraft carrier is traveling forward with a velocity of 60 km/h. At the instant shown, plane A has just taken off the end of the carrier and has a forward horizontal velocity of 250 km/h, measured from still water. If plane B is traveling along a different runway of the carrier in the direction shown at 200 km/h, with respect to the carrier deck, determine the velocity of plane A as seen by the pilot of plane B.





Find: v_A/B



Solution:



Video solution:



The following video walks you through the solution to this problem. It is suggested that you try solving the problem first and then, if you have difficulties with the solution, watch the video for help.





Interactive solution:



Of the given information, which quantities are absolute and which are relative?



1. 60 kph



2. 250 kph



3. 200 kph
