Plane Curvilinear Motion - Constrained & Dependent Motion

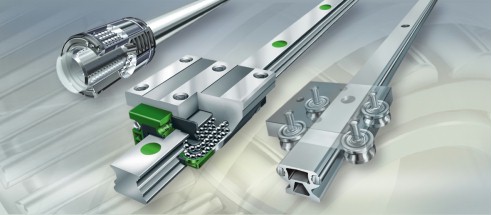

Linear bearings / collars



Constrain the motion along a shaft.





Slots

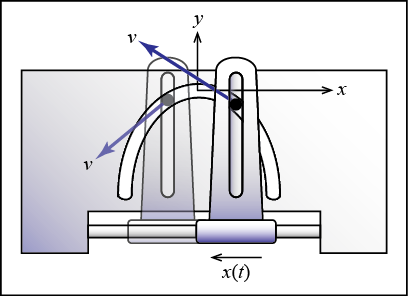

Constrain the motion along a slot. Velocity is always tangent to the slot path.

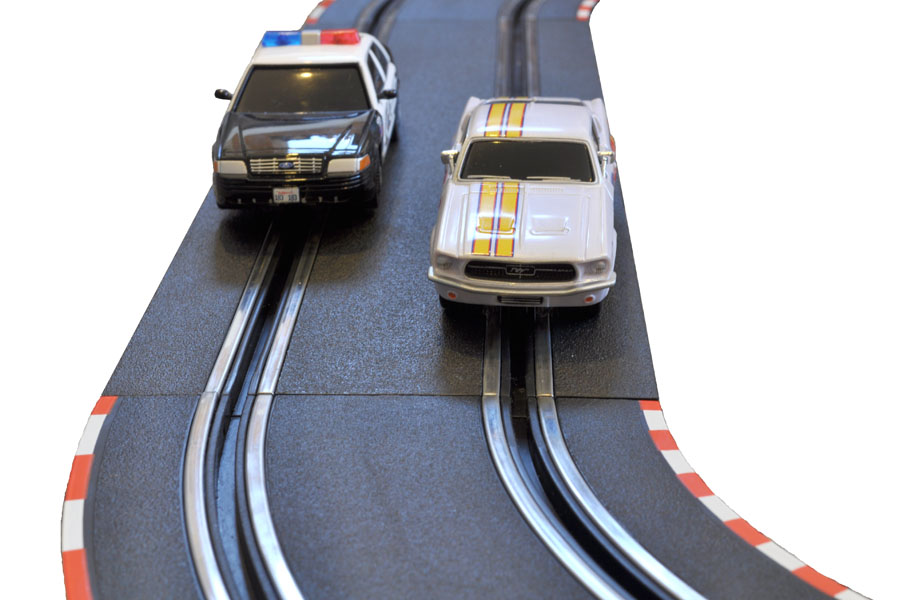

A good example of the slot constraint are slot cars.





Joints

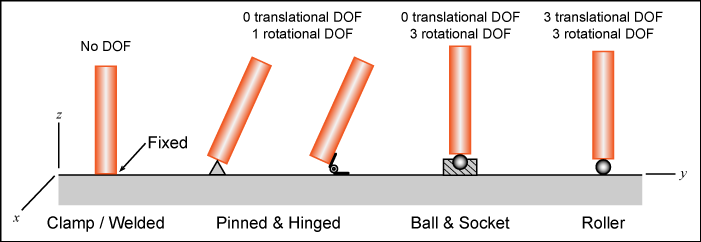

Different joints constrain motion in different ways.

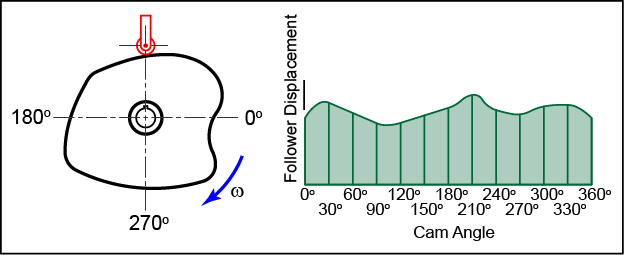

Surface contacts / cam and follower

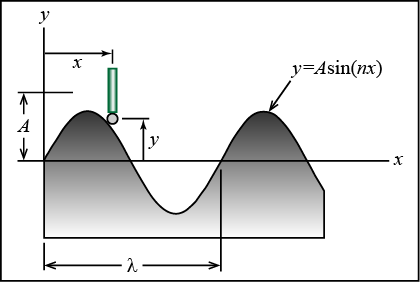

The motion of the particle in contact with the surface is dependent on the surface profile.
